Ductile Iron DIN GG25 DN100 PN16 Water Pipe Gate Valve

  • >=1 Sets
    $1.00
Size:
1/4in 3/8in 1/2in 3/4IN 1in 1 1/4in 1 1/2in 2in 2 1/2in
Material:
Casting
Pressure:
Low Pressure
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
EVK
Model Number:
EVK-iron gate valve53
Application:
General
Power:
Manual
Temperature of Media:
Medium Temperature
Structure:
Gate
Media:
Water, Oil and Steam etc.
Port Size:
DN50-DN1000
Standard or Nonstandard:
Standard
Name:
Ductile Iron DIN GG25 DN100 PN16 Water Pipe Gate Valve
Design Standard:
ANSI/MSS SP-70
Body Material:
Cast iron GG25
Bonnet Material:
Cast iron GG25
Stem:
SS/Bronze
Wedge Seal:
Brass
Body Seal:
Brass
Standard:
ANSI
Supply Ability
Supply Ability:
10000 Set/Sets per Week Ductile Iron DIN GG25 DN100 PN16 Water Pipe Gate Valve
Packaging & Delivery

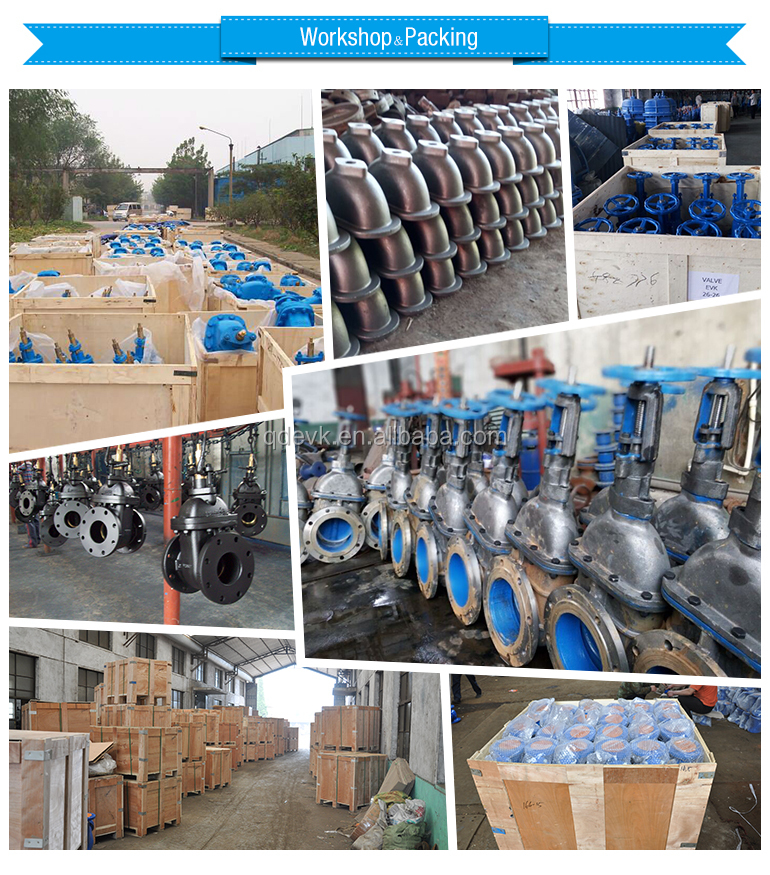

Packaging Details
Bubble bags and plywood cases or as customer requirement.
Port
Ningbo/Qingdao

Ductile Iron DIN GG25 DN100 PN16 Water Pipe Gate Valve




1. We offer the non-standard valves,according to customer requirements.



2. If you want,you can have your own logo on the products, OEM is available.



3. Export to mainly market: Russia and America



4. We can promise the quality.



Technical Data

Material Specification

DN

DN50~600

Valve Body











Cast Iron GG25

Class

PN10,16

Bonnet

Working Temperature

-40℃~ +225℃

Gland Flange



Flange Drilling Standard



GOST 12820-80.GOST 12815-80



Handwheel

Surface Treatment

Anti-rust Oil or Painted

Thrust Washer









Application

Portable Water, Water Distribution

 Service & Feed Lines,

Sewage Disposal,

Irrigation,

Fire Protection Pipe System etc.

Valve Disc

Seal Material

Brass

Stem



Carbon Steel

Wedge Nut

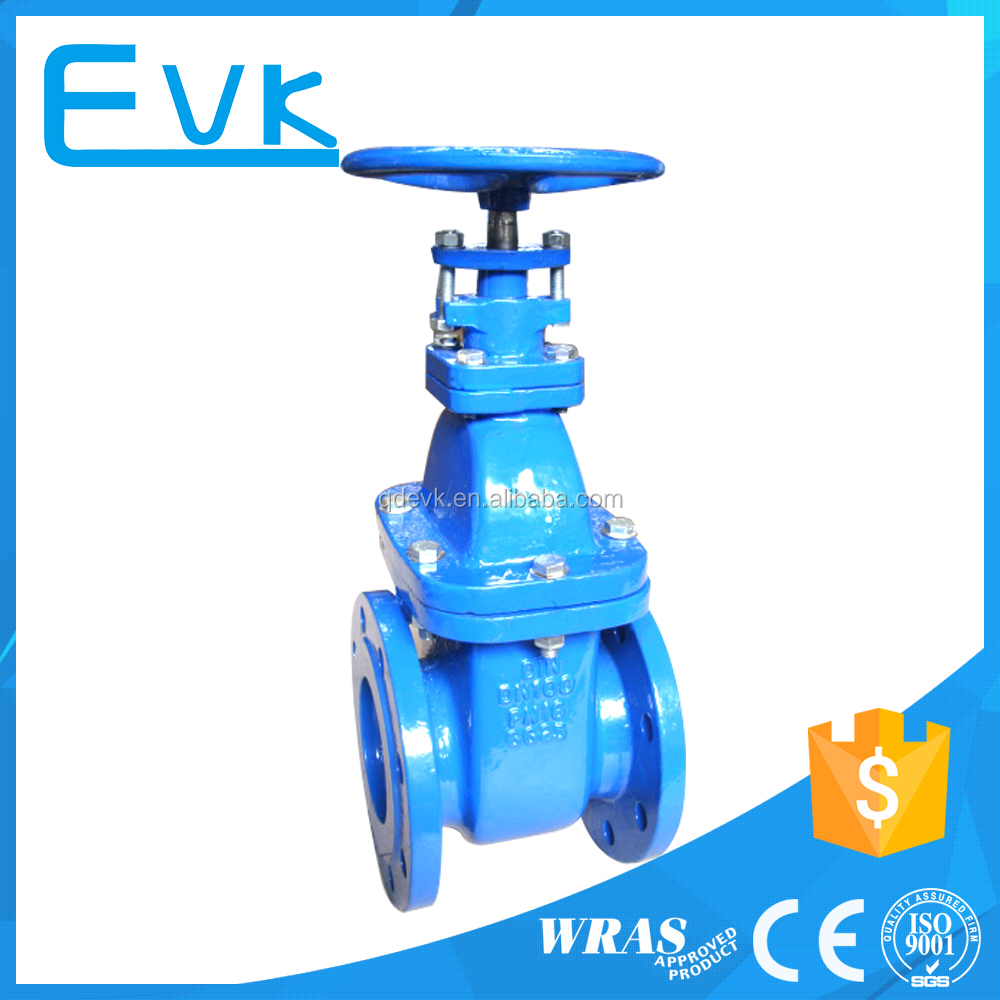

DIN3352 F4 CAST IRON METAL SEATED GATE VALVE NRS.JPG

_



1. Cast Iron Butterfly Valve

2. Iron Ball Valve

3. Carbon Steel Gate Valve

4. Stainless Steel Floating Ball Valve

5. Butt Weld Pipe Fitting

6. Forged Steel Pipe Fitting

7. Malleable Iron Pipe Fitting

8. Stainless Steel Screw Pipe Fitting

9. Ductile Iron Grooved Pipe Fitting

10. Ductile Iron Flanged Pipe Fitting

11. Slip On Flange
