DIN3352 DN80 PN16 Manual Ductile Iron F5 Resilient Seated Gate Valve

  • >=10 Pieces
    $25.00
Size:
DN40-DN1000
Material:
GG25/GGG40/GGG50
Pressure:
Medium Pressure
Lead Time:
Quantity(Pieces) 1 - 100 101 - 200 >200
Est. Time(days) 10 15 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
EVK
Model Number:
gate valve
Application:
General
Power:
Manual
Temperature of Media:
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Structure:
Gate
Media:
Water
Port Size:
Standard
Type:
Gate Valves
Product name:
DIN3352 DN80 PN16 Manual Ductile Iron F5 Resilient Seated Gate Valve
Standard or Nonstandard:
Standard
Standard:
BS;DIN F4,F5;AWWA C509/C515;ANSI
Face to face:
EN 558-1, MSS
Flanged ends:
DIN 2501, BS 4504, ANSI B16.10
Size:
DN40-DN1000
Body Material:
DI/WCB
Knife Material:
SS304/SS316
Operation:
handwheel, nut, extension stem, gear operator
MOQ:
10 pieces
Supply Ability
Supply Ability:
10000 Set/Sets per Week bs5163 high pressure gate valve
Packaging & Delivery
Packaging Details
bs5163 high pressure manufal gate valve:
can be packaged in plywood cases or as customer requires.
Port
Qingdao/Ningbo/Xiamen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 100 101 - 200 >200
Est. Time(days) 10 15 To be negotiated

bs5163 high pressure manual cast iron gate valve


Product Description

 DIN F5 RESILIENT GV-1.jpg



1.Face to Face: EN 558-1, MSS

2.Flanged ends: DIN 2501, BS 4504, ANSI B16.10

3.Test & Inspection: DIN 3230

4.Operator: handwheel, nut, extension stem, gear operator

5.DN:40-1000mm

body: ductile iron/WCB

knife: SS304, SS316

U seat: EPDM/NBR

stem: 2Cr13, SS410, SS304

stem nut: brass

Non-rising stem resilient soft seated gate valve DIN3352-F5-Z45X          ITSEN03

Componets and Material
1Body Ductile iron
2Disc   Ductile Iron+EPDM/NBR
3Stem   Stainless steel
4Bonnet   Ductile Iron
5O-ring   EPDM/NBR
6Nut   Brass
7Hand wheel  Ductile Iron

Application
Face to face is according to DIN3202 F5
Flange drilled is according to DIN2532/2533/2501
Nomonal pressure PN10/16

Dimensions
Flange drilled is according to DIN2533
DN40506580100125150200250300
L240250270280300325350400450500
D150165185200220250285340405460
D1110125145160180210240295355410
D288102122138158188212268320378
Do160160160160200250250320360360
H225225237260310380420500637720
z-d4-184-184-188-188-188-188-2312-2312-2712-27
Detailed Images

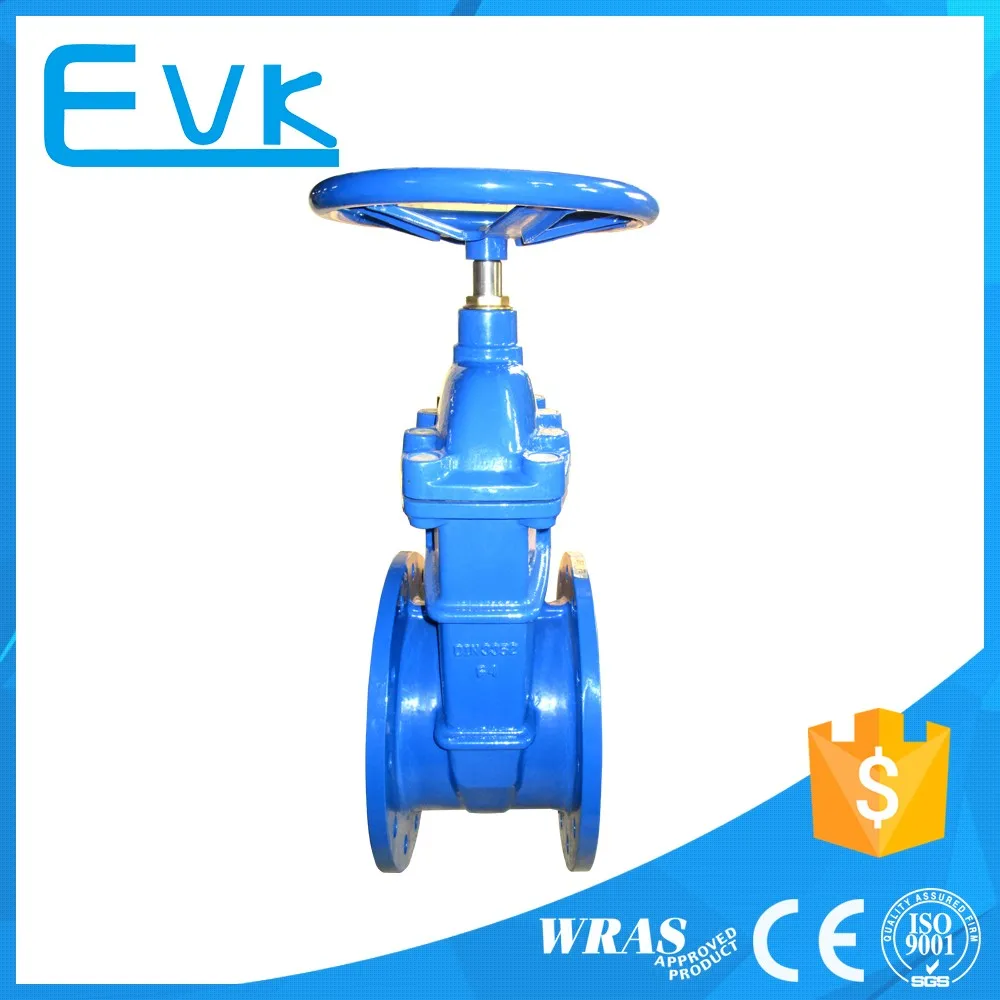

DIN3352 F4 RESILIENT SEATED GATE VALVE EPDM SEAT.JPG

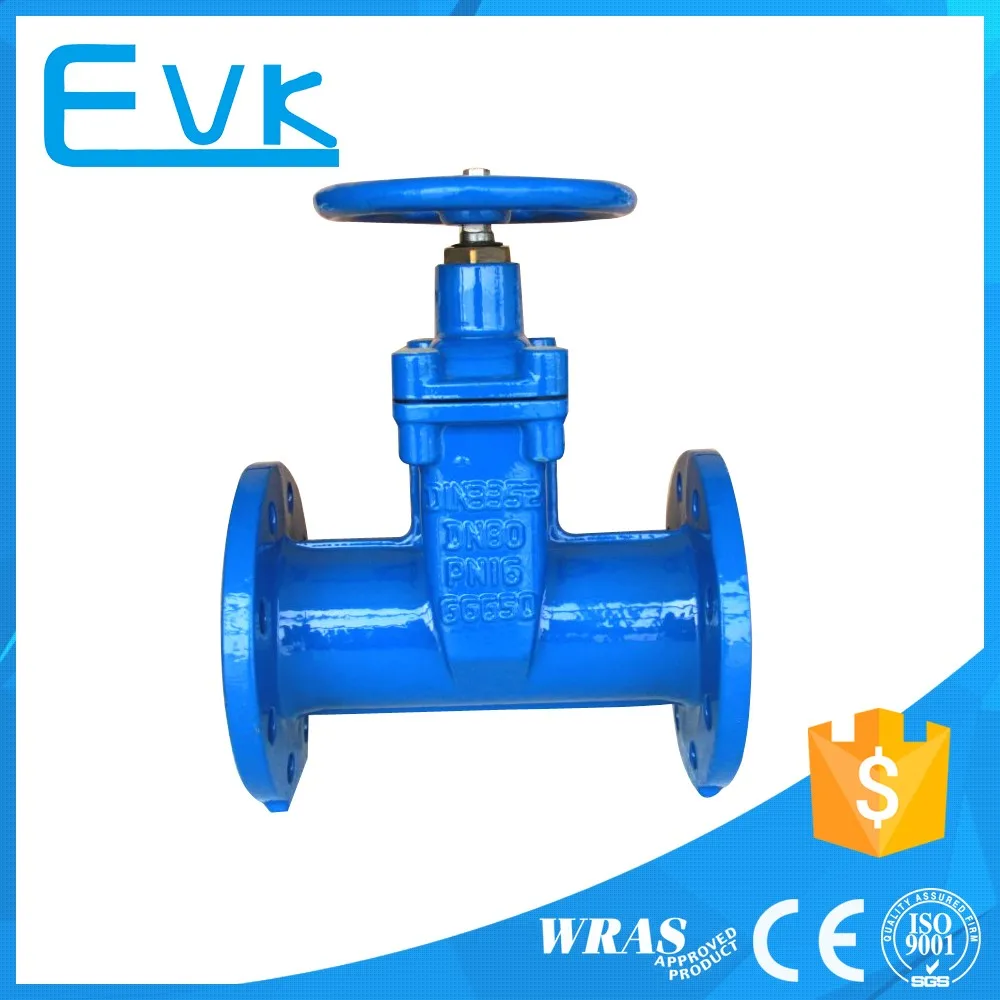

DIN3352 F5-Ductile-Iron-Gate-Valve-Resilient-Seated-.jpg

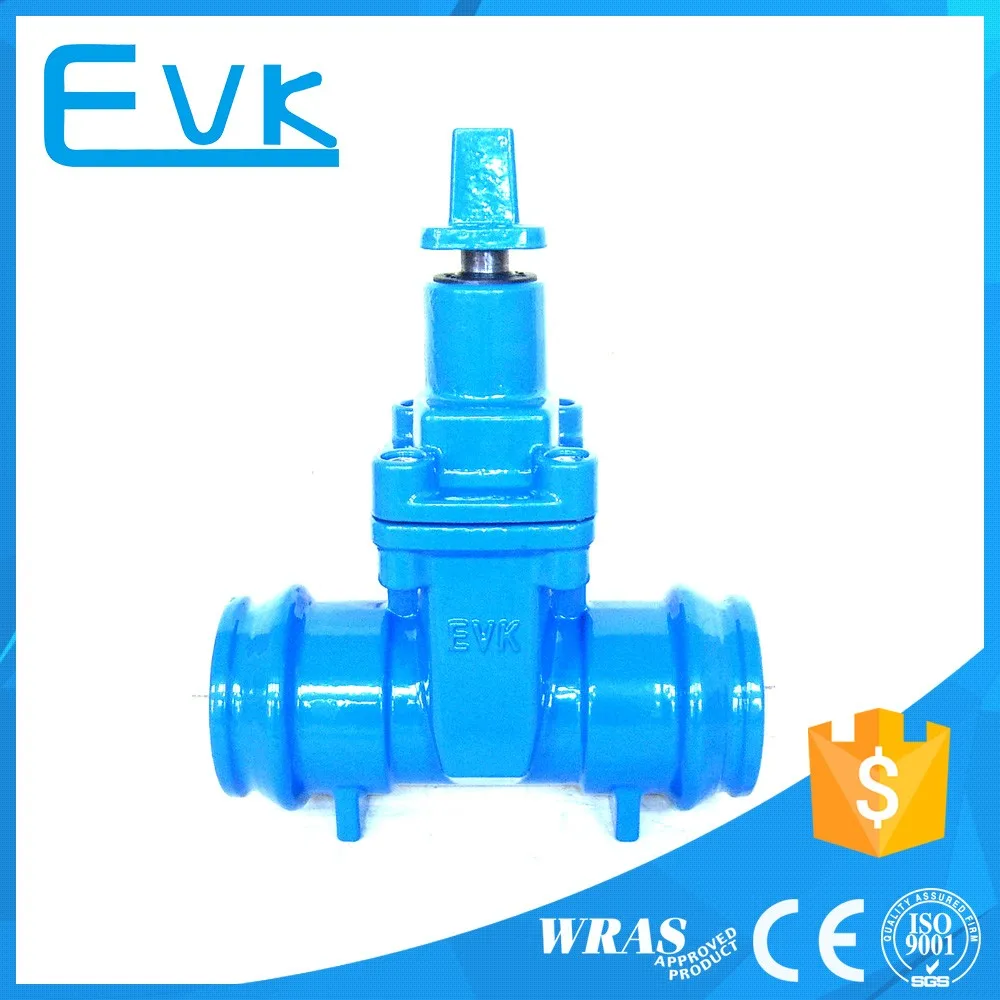

SOCKET END DUCTILE IRON RESILIENT SEATED GATE VALVE PN16.jpg

Application



1. Water works and water resource project

2.Environment protection

3.public facilities

4.Power and Public utilities

5.Building industry

6.Petroleum, chemical

7.Steel, metallurgy

8.Paper making industry



Advantages



Competitive Prices:We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. So we can provide the straight factory price and service to our customer.



OEM Accepted:  We can make the products with the client's demand standard, and also have many experience on OEM.



Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc.



100% QC inspection Before Shipment.



Quick Delivery: We have the large stock for some hot products.





iron gate valve .jpg
